Custom Laser-Cut 3M VHB tape: High strength adhesive bonding without fasteners, drilling, or welding
3M VHB™ Tape is a high performance double-sided acrylic foam tape designed to permanently bond parts together without mechanical fasteners. It is widely used as an alternative to screws, rivets, welding, and liquid adhesives in applications where clean appearance, vibration damping, and long-term durability are required. VHB stands for “Very High Bond,” and the name reflects what the material does best. It creates strong, reliable bonds across a wide range of materials including metals, plastics, composites, painted surfaces, and coated panels. At SendCutSend, we laser cut .045 inch 3M VHB tape to ±.009 inch tolerance, allowing customers to order custom adhesive shapes, mounting pads, gasket-like profiles, and precision cut bonding layers that are ready to apply straight out of the box.
What are the key things to know about 3M VHB tape?
- High strength acrylic foam adhesive
- Designed to replace mechanical fasteners
- Bonds to many metals, plastics, and coated surfaces
- Absorbs vibration and thermal expansion
- Laser cuts cleanly into precise shapes
Why do engineers and fabricators use 3M VHB tape instead of fasteners?
VHB allows parts to be bonded without drilling holes, adding hardware, or introducing stress concentrations.
Fabricators choose VHB because: •
- It creates a clean, fastener-free appearance
- It distributes load evenly across the bond area
- It eliminates the need for drilling or welding
- It reduces assembly time
- It provides both bonding and vibration damping
- It allows for bonding of dissimilar materials In many assemblies, VHB tape performs better than screws or rivets because it spreads stress instead of concentrating it at fastener points.
How strong is 3M VHB tape in real applications?
People often underestimate adhesive strength, which is why this question comes up so frequently.
3M VHB tape is used in:
- • Automotive trim and panels
- Commercial signage
- Architectural facades
- Electronics enclosures
- Appliances
- Transportation equipment
- Industrial panels Its strength comes from the viscoelastic acrylic foam core, which allows the adhesive to flow into microscopic surface irregularities and maintain contact over time.
Important things to understand about strength:
- Bond strength increases over time after application
- Full strength is typically achieved after 24 to 72 hours
- Larger bond area equals higher load capacity
- Surface preparation is critical
- VHB performs best in shear rather than peel When designed correctly, VHB bonds can last for years in demanding environments.
What materials does 3M VHB tape bond to best?
3M VHB tape bonds well to:
- Aluminum and steel
- Stainless steel
- Painted and powder coated metals
- Acrylic and polycarbonate
- ABS plastic
- HDPE and UHMW when surface prepared
- Composite panels such as ACM
- Glass and sealed wood surfaces
For customers working with metals and plastics offered by SendCutSend, VHB pairs especially well with:
Surface cleanliness and preparation have a larger impact on bond quality than the material itself.

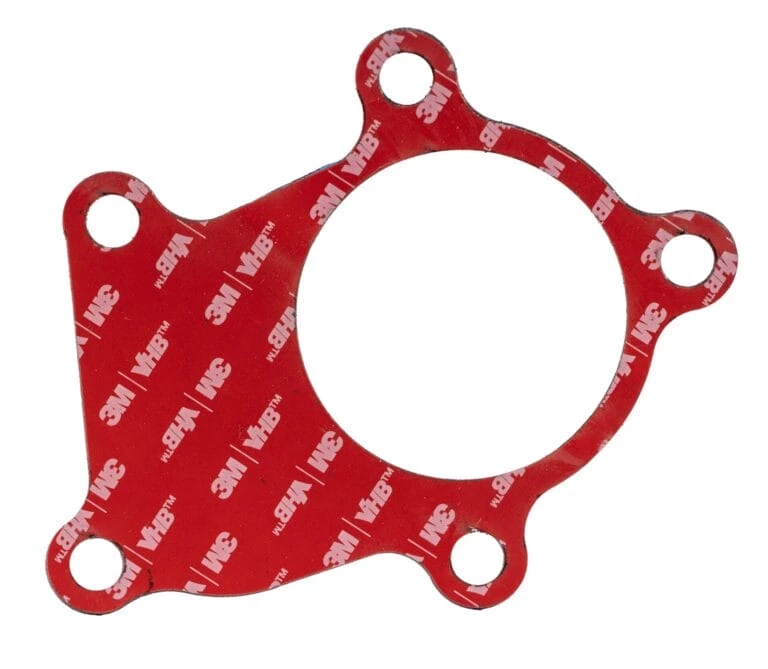

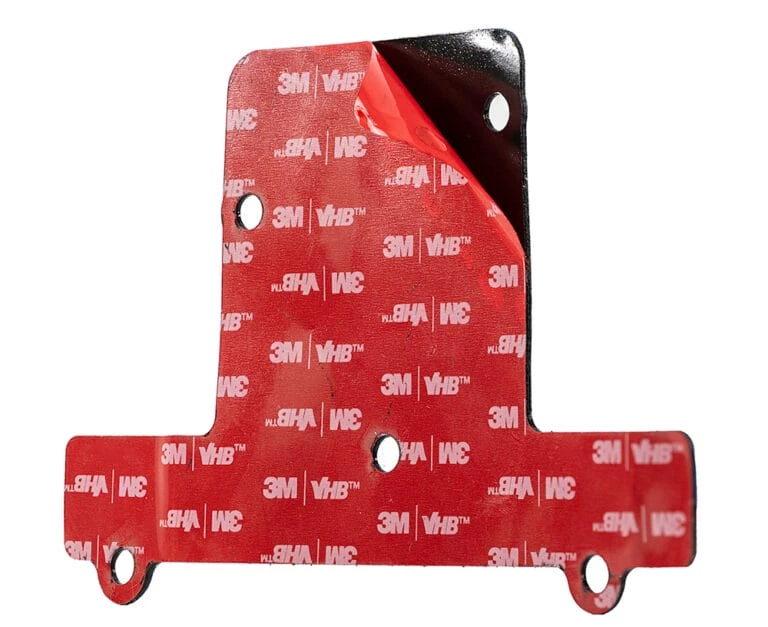

How does laser cutting affect 3M VHB tape?
Laser cutting is one of the best ways to produce custom VHB shapes because it allows for precision without mechanical deformation.
What to expect from laser cut VHB tape: •
- Clean, accurate edges
- Tight internal geometry
- Consistent adhesive coverage
- No tearing or stretching
- Repeatable part-to-part accuracy
Laser cutting also allows for complex shapes that would be difficult or impossible to die cut at low volumes. At .045 inch thickness, VHB tape laser cuts cleanly and maintains consistent edge quality across both straight and curved features.
What are the advantages of using laser cut 3M VHB tape?
Eliminates mechanical fasteners
Using VHB removes the need for screws, rivets, or welds, which simplifies assemblies and improves appearance.
Distributes load evenly
Unlike fasteners that concentrate stress, VHB spreads load across the entire bonded area.
Absorbs vibration and movement
The acrylic foam core dampens vibration and allows for slight movement caused by thermal expansion or shock.
Clean and professional appearance
No visible hardware, no surface distortion, and no post-assembly finishing.
Faster assembly
Peel and stick application is significantly faster than drilling, tapping, or fastening.
What are the limitations or drawbacks of 3M VHB tape?
Surface preparation is required
Poor surface prep is the most common cause of adhesive failure.
Not ideal for peel-loaded joints
VHB performs best in shear. Designs that apply peeling force require additional bond area or mechanical support.
Bond strength builds over time
Immediate handling is possible, but full strength develops after the adhesive wets out.
Not removable without damage
VHB is intended for permanent bonding. Removal usually damages one or both surfaces.
Limited thickness options
At .045 inch, VHB is not meant for filling large gaps or acting as a compressible gasket.
How should I design parts for use with 3M VHB tape?
Designing for adhesive bonding is different than designing for fasteners.
Recommended design practices:
- Maximize bonding surface area
- Avoid designs that apply peel force to the bond
- Use lap joints instead of butt joints when possible
- Keep adhesive paths continuous
- Avoid sharp internal corners in adhesive geometry
- Allow room for adhesive compression during assembly
- Consider alignment features if precision placement is required
For more general guidance on designing flat parts, see: https://sendcutsend.com/guidelines
How should surfaces be prepared before applying VHB tape?
Surface prep is one of the most searched topics related to VHB. Best practices include:
- Clean surfaces with isopropyl alcohol
- Remove oils, dust, and fingerprints
- Ensure surfaces are dry
- Apply firm pressure during installation
- Allow dwell time before loading the bond
For difficult plastics or low surface energy materials, additional surface treatment may be required.
Where is laser cut 3M VHB tape most commonly used?
Laser cut VHB tape is used anywhere precision bonding is required. Common applications include:
- Mounting panels and nameplates
- Bonding signage and displays
- Attaching enclosures and covers
- Securing electronics components
- Automotive trim and interior components
- Industrial equipment panels •
- Appliance assembly
- Prototyping and short-run production
It is especially useful when combined with laser cut metal or plastic parts to create complete assemblies without secondary operations.
Are SendCutSend 3M VHB tape parts made in the USA?
3M VHB tape offered by SendCutSend is USA sourced, ensuring consistent adhesive performance and material quality. All laser cutting, inspection, and order fulfillment take place in one of SendCutSend’s three U.S. manufacturing facilities:
- Reno, Nevada
- Paris, Kentucky
- Arlington, Texas
This allows fast turnaround, consistent cut quality, and reliable availability for custom adhesive components.
When should I use 3M VHB tape for my project?
Use 3M VHB tape when you need a strong, permanent bond without drilling, welding, or visible hardware. VHB tape is the right choice if your project requires:
- Clean, fastener-free appearance
- Strong bonding between flat surfaces
- Vibration damping
- Quick assembly
- Precision cut adhesive shapes
- Long term durability
It may not be the best choice for:
- High peel load applications
- Joints requiring frequent disassembly
- Large gap filling
- Extremely rough or contaminated surfaces
SendCutSend laser cuts .045 inch 3M VHB tape to ±.009 inch tolerance with 2 to 4 day lead times, giving you ready-to-apply adhesive components that integrate cleanly into your fabrication workflow.
