4130 chromoly steel FAQs and laser cutting design guide
4130 chromoly steel is one of the strongest and most versatile steels available for sheet metal fabrication. Known for its excellent strength-to-weight ratio, toughness, and weldability, it’s a go-to alloy for motorsports, aerospace, and structural projects. Below, we dig into the most common questions about 4130 chromoly and how to design your parts for best results with SendCutSend’s precision laser cutting.
Key takeaways for 4130 chromoly steel
- High strength and toughness: 4130 combines excellent tensile strength (~97 ksi) with impact toughness and fatigue resistance.
- Great weldability: Performs well under TIG or MIG welding with minimal preheat.
- Heat-treatable alloy: Can be normalized or quenched and tempered to reach higher strength levels.
- Excellent strength-to-weight ratio: Lighter than mild steel at comparable strength, ideal for high-performance designs.
- Laser cut precision: SendCutSend laser cuts 4130 sheet metal to ±.005″ tolerance with a fast 2–4 day lead time.

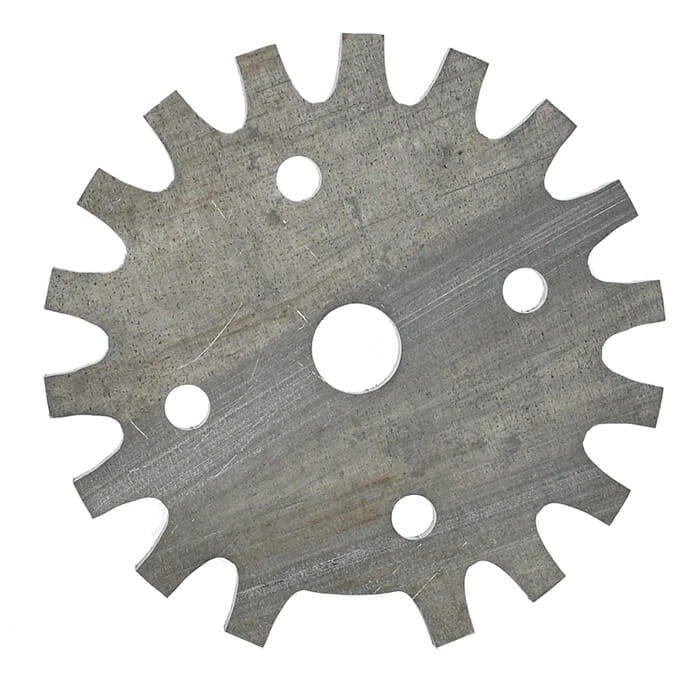

What is 4130 chromoly steel?
4130 chromoly is a low-alloy steel containing chromium and molybdenum, giving it superior strength, toughness, and heat treatability compared to plain carbon steels. It’s classified as an “aircraft-grade” steel because of its consistent performance under high stress and variable loading conditions. Its balance of weldability, machinability, and strength makes it a staple for roll cages, suspension parts, and structural components.
What are the mechanical and physical properties of 4130 chromoly?
4130 offers an ideal mix of strength, ductility, and impact resistance. Typical properties for annealed 4130:
- Density: 0.283 lb/in³ (7.83 g/cm³)
- Tensile strength: ~97 ksi (670 MPa)
- Yield strength: ~63 ksi (435 MPa)
- Elongation: ~25%
- Hardness (annealed): ~197 HBl
Heat treatment can raise tensile strength significantly while maintaining toughness, making it adaptable for demanding environments.
What are common uses for 4130 chromoly steel?
4130 is widely used in motorsports, aerospace, and industrial fabrication for parts requiring high strength and low weight. Typical applications include:
- Roll cages, chassis, and suspension parts
- Aircraft fuselages and landing gear components
- Motorcycle and bicycle frames
- Tooling, brackets, and structural gussets
- Racing and performance parts
For more material options for performance and fabrication projects, see our Material Catalog.
How does 4130 compare to mild steel or stainless steel?
4130 is stronger and lighter than mild steel, and easier to weld than stainless.
- Compared to mild steel (1018, A36): 4130 Chromoly has much higher tensile strength and toughness as well as better fatigue resistance.
- Compared to stainless (304): 4130 Chromoly is not as corrosion resistant as 304 stainless, but 4130 is far easier to fabricate and weld cleanly.
- Compared to aluminum: 4130 Chromoly is roughly three times heavier than aluminum, but dramatically stronger and more rigid.
Use 4130 when performance and structural integrity matter more than corrosion resistance or minimal weight.
Can 4130 chromoly be welded?
Yes, 4130 is very weldable when done correctly.
- TIG welding is the most common method.
- Use ER80S-D2 or ER70S-2 filler for balanced weld strength and ductility.
- Preheating thick sections (above .120″) to ~300°F helps prevent cracking.
- Avoid over-hardening in the heat-affected zone by controlling cooling rate.
After welding, parts can be stress relieved or normalized to restore consistent mechanical properties.

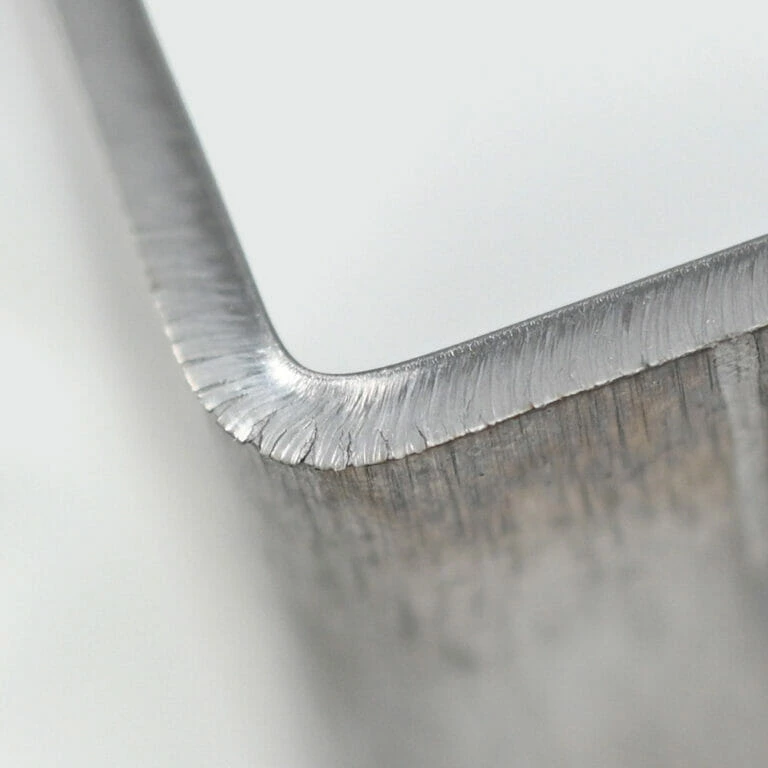

Can 4130 be bent or formed?
Yes, 4130 forms well in the annealed condition but requires care due to its higher strength.
- Cold bending is possible for thin sheet (.050″–.125″).
- For thicker sections, hot forming may be needed to prevent cracking.
- Springback is moderate, so add relief where tight angles are required.
SendCutSend offers bending on 4130 Chromoly. See our Bending Guidelines for recommendations on inside bend radii and minimum wall thickness for chromoly.
What tolerances and surface finish can be expected with 4130 chromoly?
Laser cut 4130 chromoly achieves ±.005″ tolerances and smooth, precise edges.
- Edge quality: Clean, consistent, and square from high-powered laser cutting.
- Surface finish: As-cut surfaces have a dark oxide film typical of laser cutting; minor cleanup may be needed before welding or finishing.
- Post-processing: Light sanding or bead blasting can remove the oxide for better weld prep or coating adhesion.
Check the 4130 chromoly material specifications for detailed feature size and tolerance info.
Can 4130 be heat treated?
Yes, 4130 is fully heat treatable, allowing you to tailor hardness and strength to your application.
- Annealing: 1550°F followed by slow cooling to restore ductility for forming.
- Normalizing: 1600°F air cool for uniform grain structure after welding.
- Quenching and tempering: 1550°F oil quench, then temper between 750–1050°F for the desired strength.
Many fabricators weld or form in the annealed state, then normalize or heat treat afterward to bring parts to final strength.
How does 4130 perform under fatigue and impact?
4130 has outstanding fatigue strength and toughness, making it ideal for cyclic or high-stress applications.
- Fatigue resistance: Excellent when properly heat-treated and finished.
- Impact resistance: Maintains ductility and energy absorption even at low temperatures.
- Crack resistance: Good when welds are stress-relieved and surface defects minimized.
This reliability under repeated loads is why 4130 is a favorite for roll cages, frames, and aircraft structures.
What finishing options work best for 4130 chromoly?
4130 can be finished using several protective coatings to improve corrosion resistance. Common finishes include:
SendCutSend offers plating and powder coating on 4130 Chromoly. Check with our plating guidelines and powder coating guidelines before uploading your design.
What are best practices when designing with 4130?
Design with precision and weld prep in mind to get the best performance from your 4130 parts.
- Add weld prep gaps or bevels where thicker material joins.
- Use fillets or radii instead of sharp corners to reduce stress concentration.
- Avoid excessive notches or small cutouts in high-stress areas.
- Maintain appropriate spacing for holes and tabs based on our Design Guidelines.
Design takeaway
4130 chromoly is one of the most versatile steels you can design with — strong, weldable, and heat-treatable, yet lightweight compared to other structural alloys. With SendCutSend’s laser cutting precision (±.005″) and fast turnaround, you can get high-strength, fabrication-ready 4130 parts in as little as 2–4 days. Compare 4130 to other performance metals in our Material Catalog to find the best fit for your next project.
